With everything else that has been going on it has been difficult to focus on house construction, but we have made some progress …

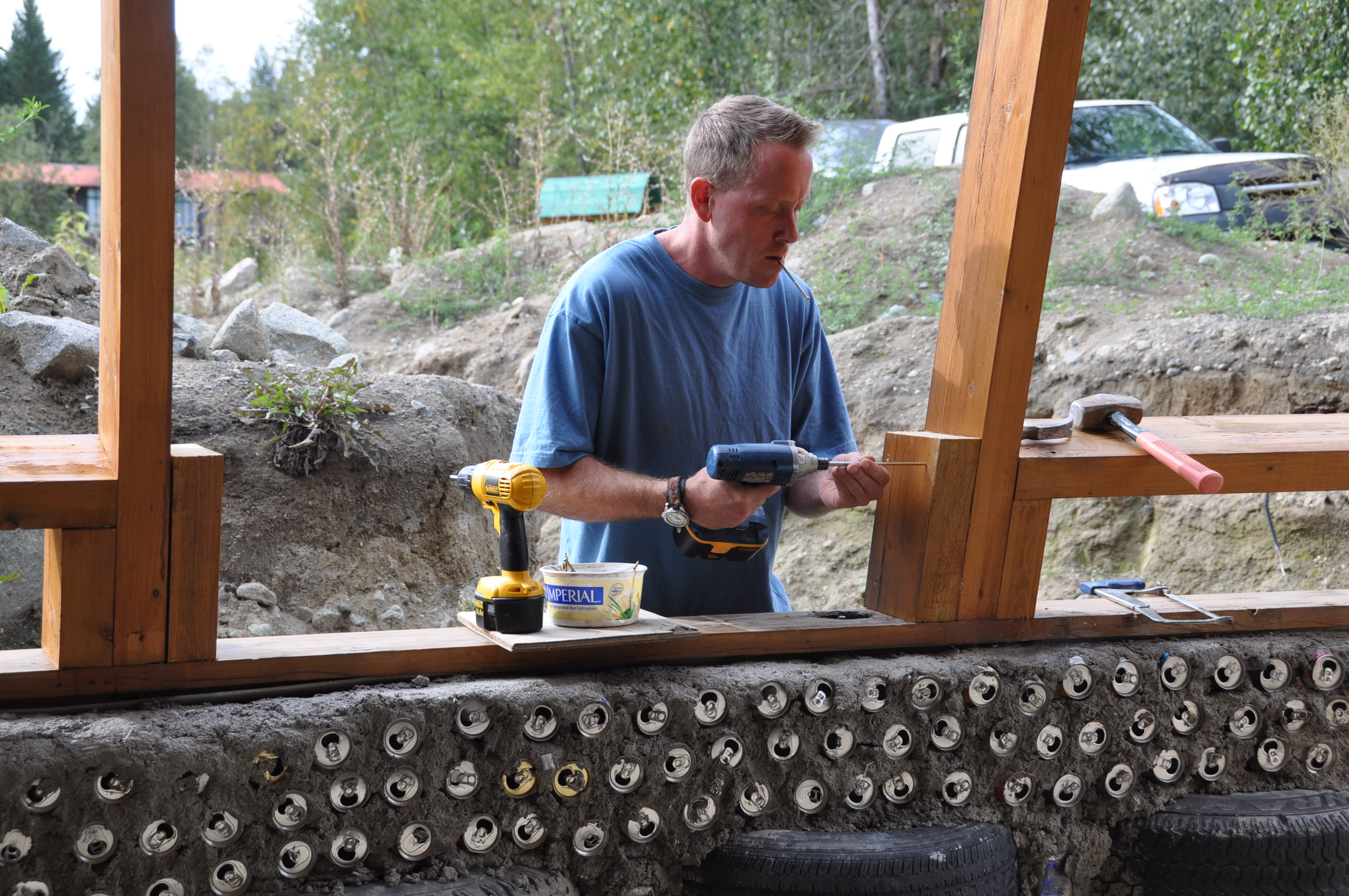

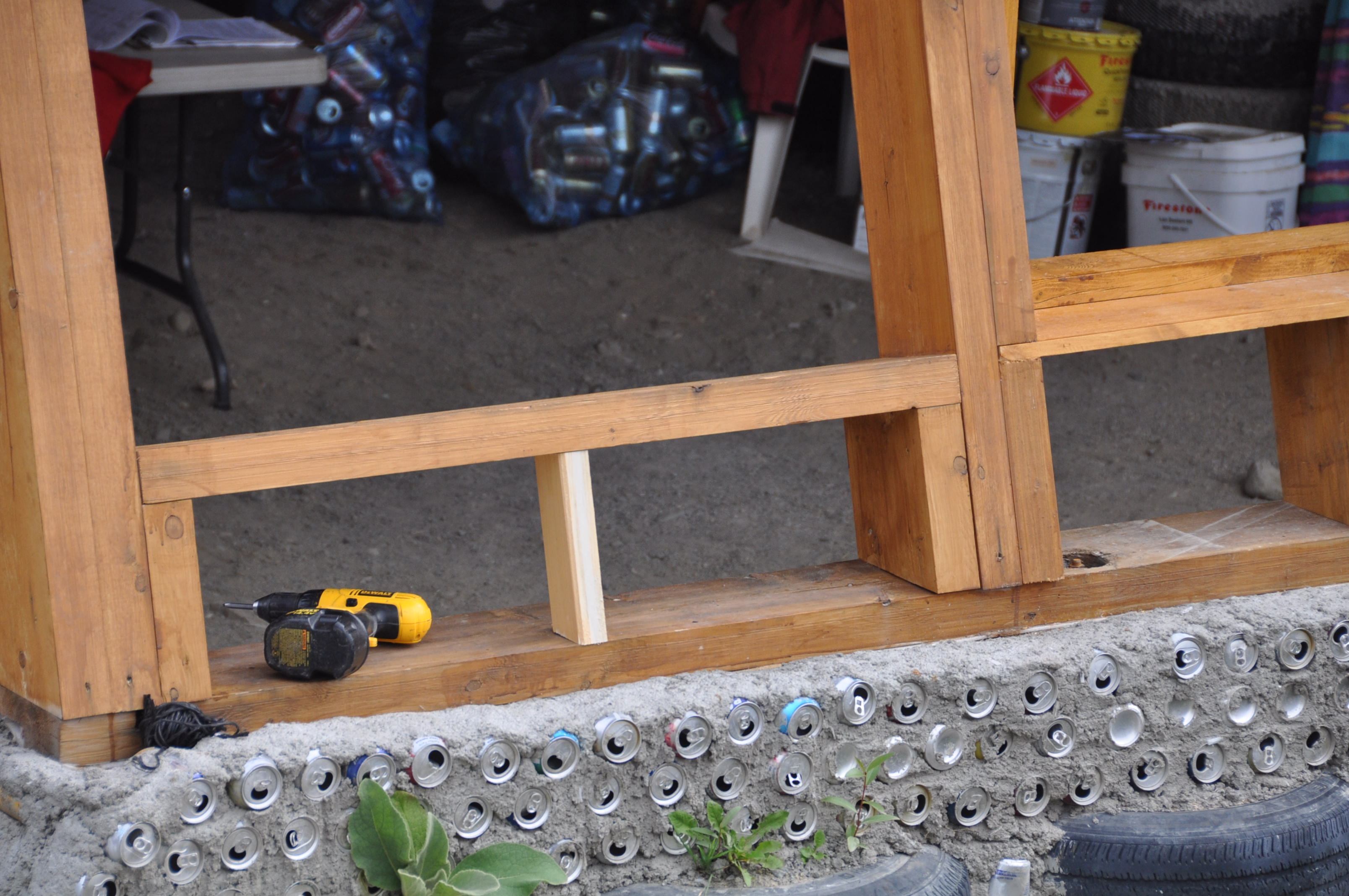

After committing to and ordering the glazing system for the front wall we got serious about finishing the framing for the front wall. We started by framing supports for the bottoms of the fixed windows. This was fairly simple; we used a 3×8 for the support and the side braces it rests on. ‘we applied borate wood preservative and stained this material. We also put a 2×3 brace under the centre of the support. This brace is smaller to allow drilling for electrical lines down the road. We found ourselves picking through our reject 3×8 pile to finish this job … I sure hope we are done with front wall framing materials!

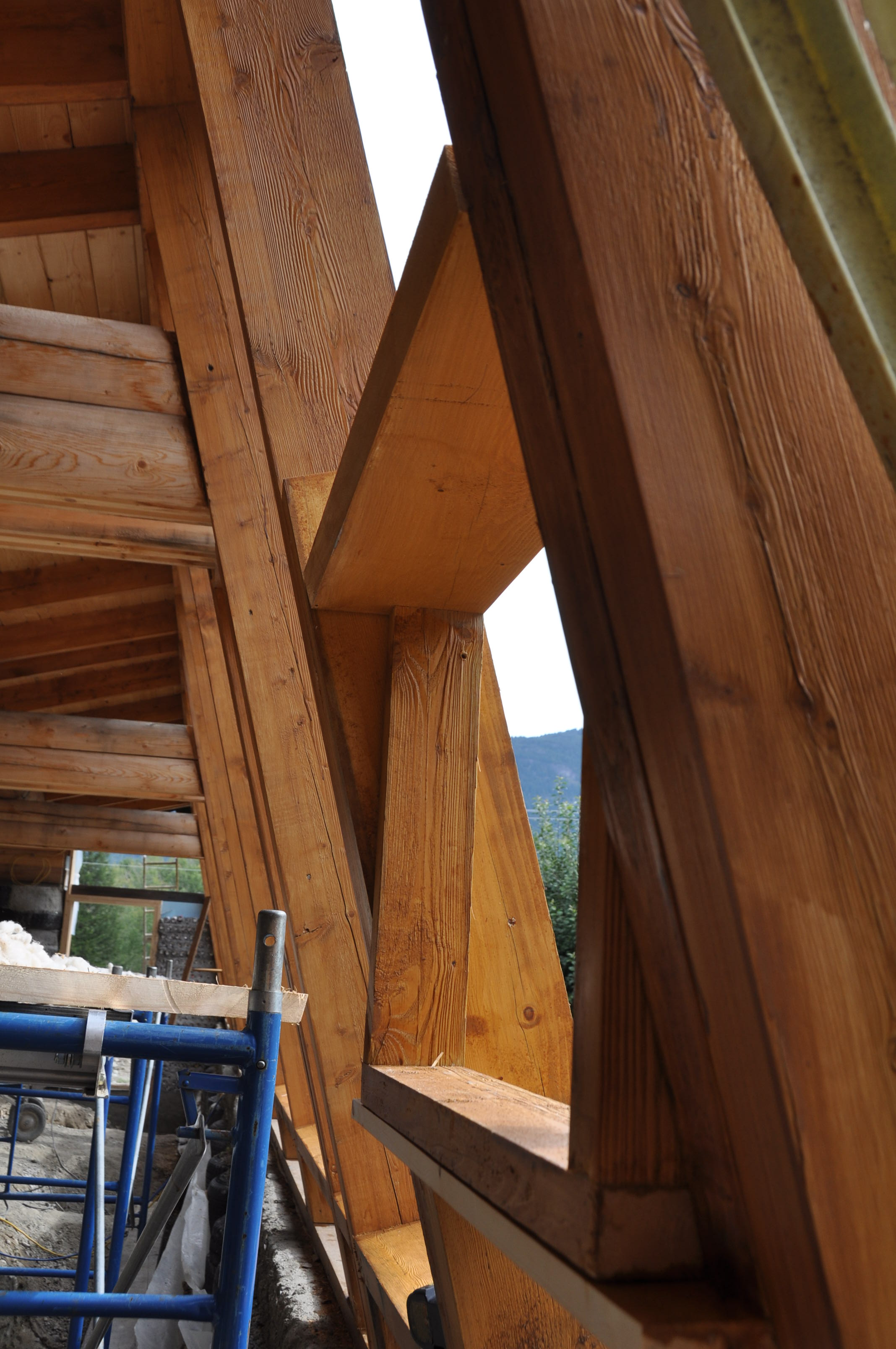

We moved on to framing the openings for the operable windows. This was a painful experience! It was not a physically demanding job, and the work went quickly once we knew what we were doing, but getting to the point of knowing what to do was definitely the hard part. We discussed, argued, argued some more, and finally got sorted out. The good news is we are still talking, but for a while we were talking very LOUDLY!
I will start by saying we were not thrilled with the operable window solution presented in the Earthship volumes. I did not like the dormer walls described in volume I and Sandra was not thrilled with the updated operable windows built into the tires shown in Volume III. We opted to keep our windows in the framed wall (as in Volume I), but made them lower and wide. The advantage of the windows in the tire wall is that they are lower (improving your air flow), but the look of these windows was simply not going to fly in our house (Sandra and I are no longer discussing this option … loudly or not). We also thought about foregoing operable windows completely in favour of cooling tubes running under the front wall. We may still install these cooling tubes, but decided that aesthetically we also wanted operable windows.

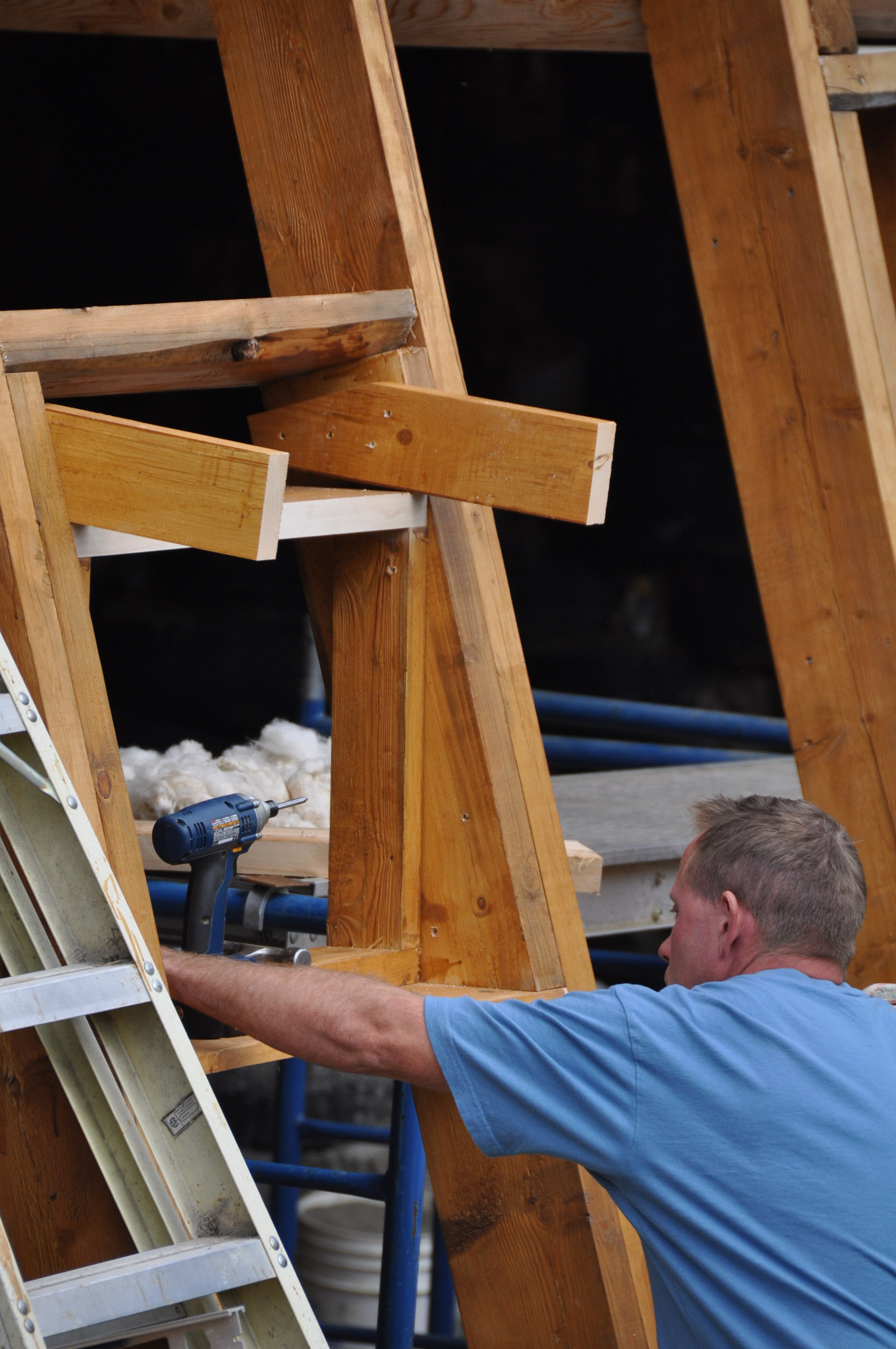

Our operable windows lie completely within the 3×8 framing for the rest of the wall meaning we do not have dormer walls for these windows. I wanted to avoid these walls as I was concerned about breaking up the light entering the building. We accomplished this by keeping the windows short (just under 2′), and extending the platform that the windows sit on out past the plane of the wall by a few inches. We used 2×4 lumber for this framing except the top which is ripped down 2×10. Again we treated all of this material with preservative and then stained it. The final step in framing these windows was to add rafters for a small roof to keep the rain off.

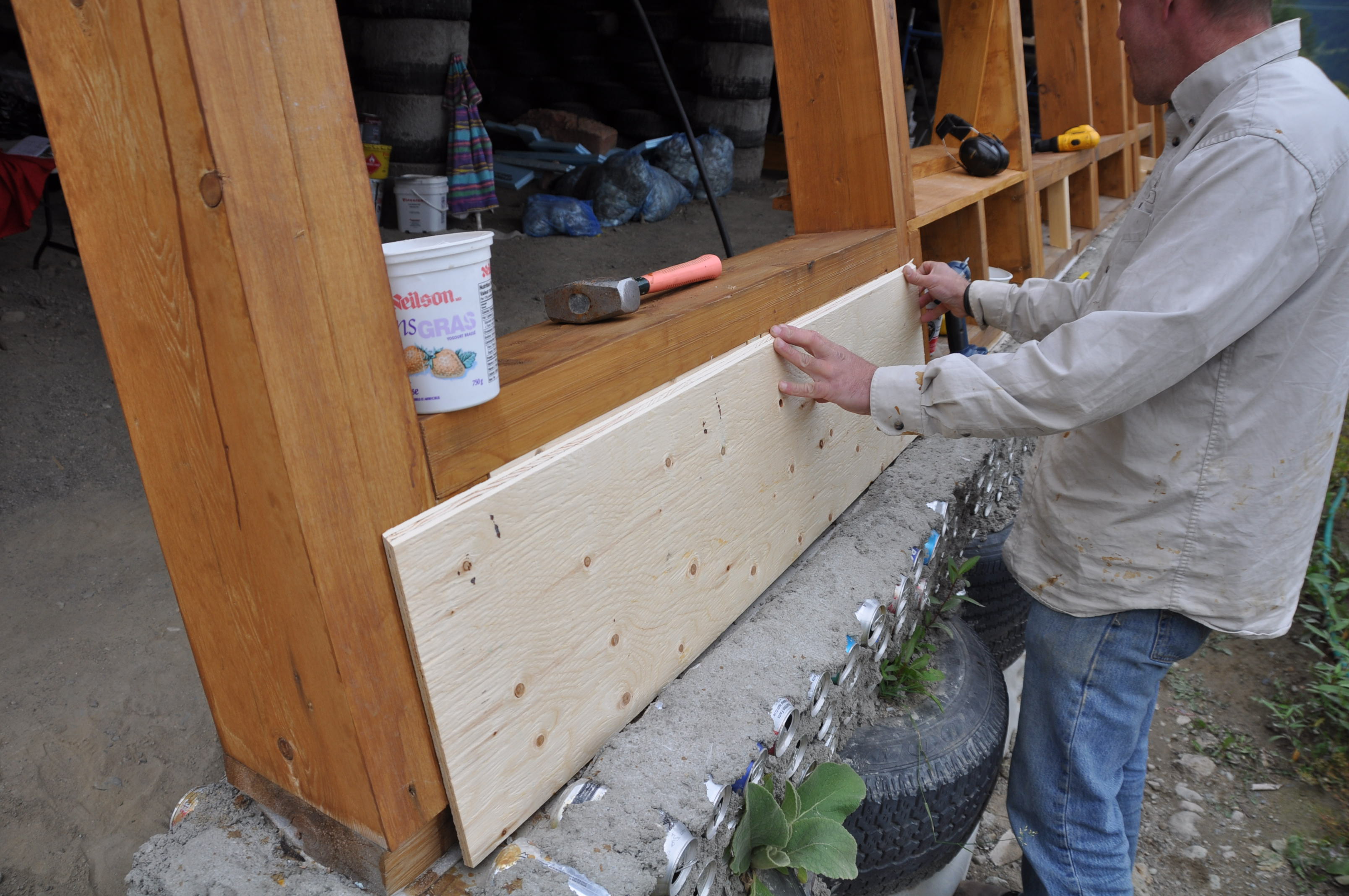

The next step was to cover the bottom of the framing (where there are no windows) with plywood. We beveled the top edge of the plywood on a 45 degree angle so that the flashing did not have to make a 90 degree bend where it will eventually be tucked under the bottom edge of the extruded aluminum glazing system. After that we put an underlayment (we used 15 # roofing paper) on the front face. We also did this on the exterior faces of the 3×8 studs as we wanted something between the aluminum glazing system and the wood.

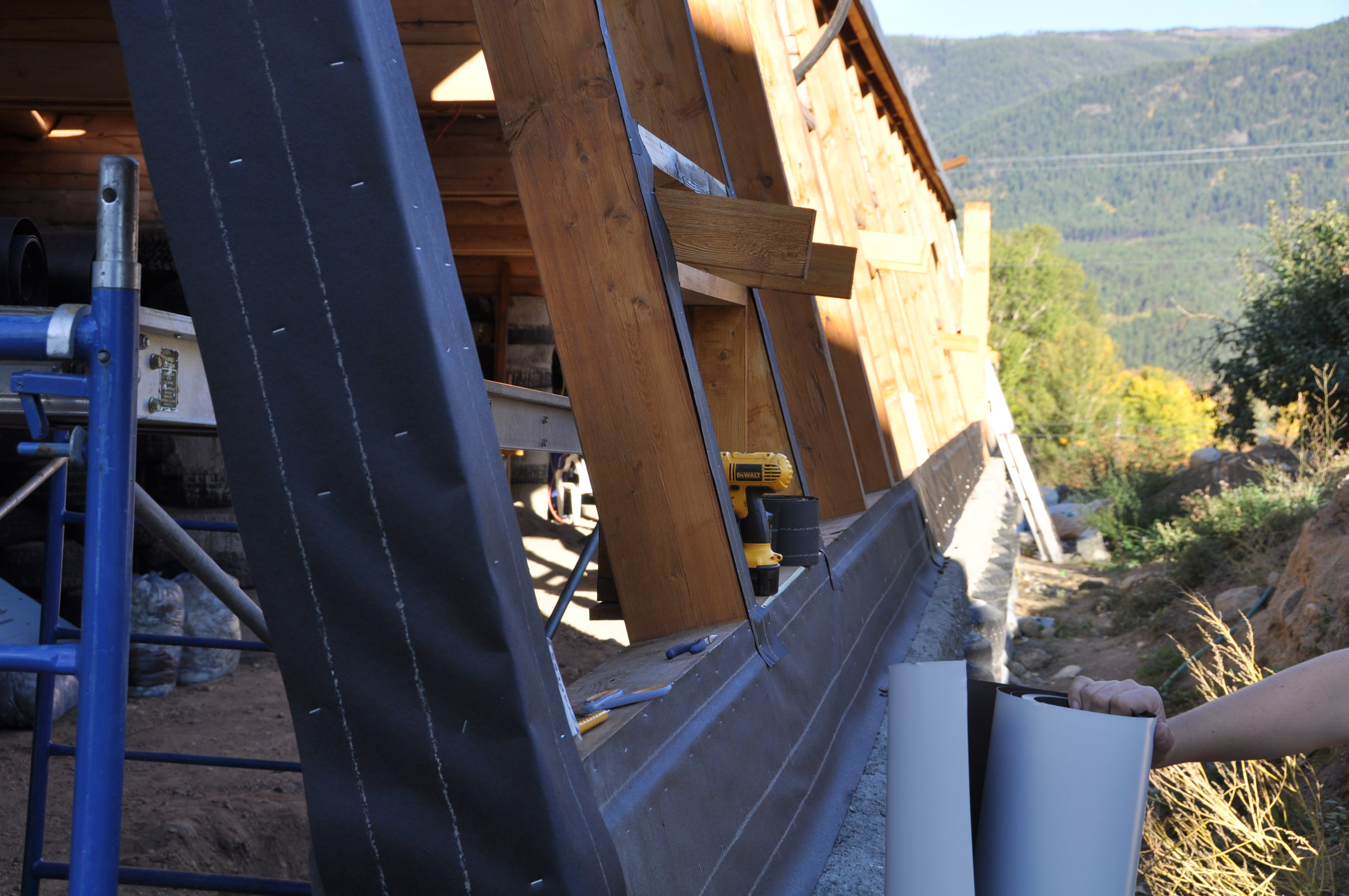

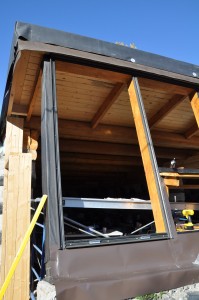

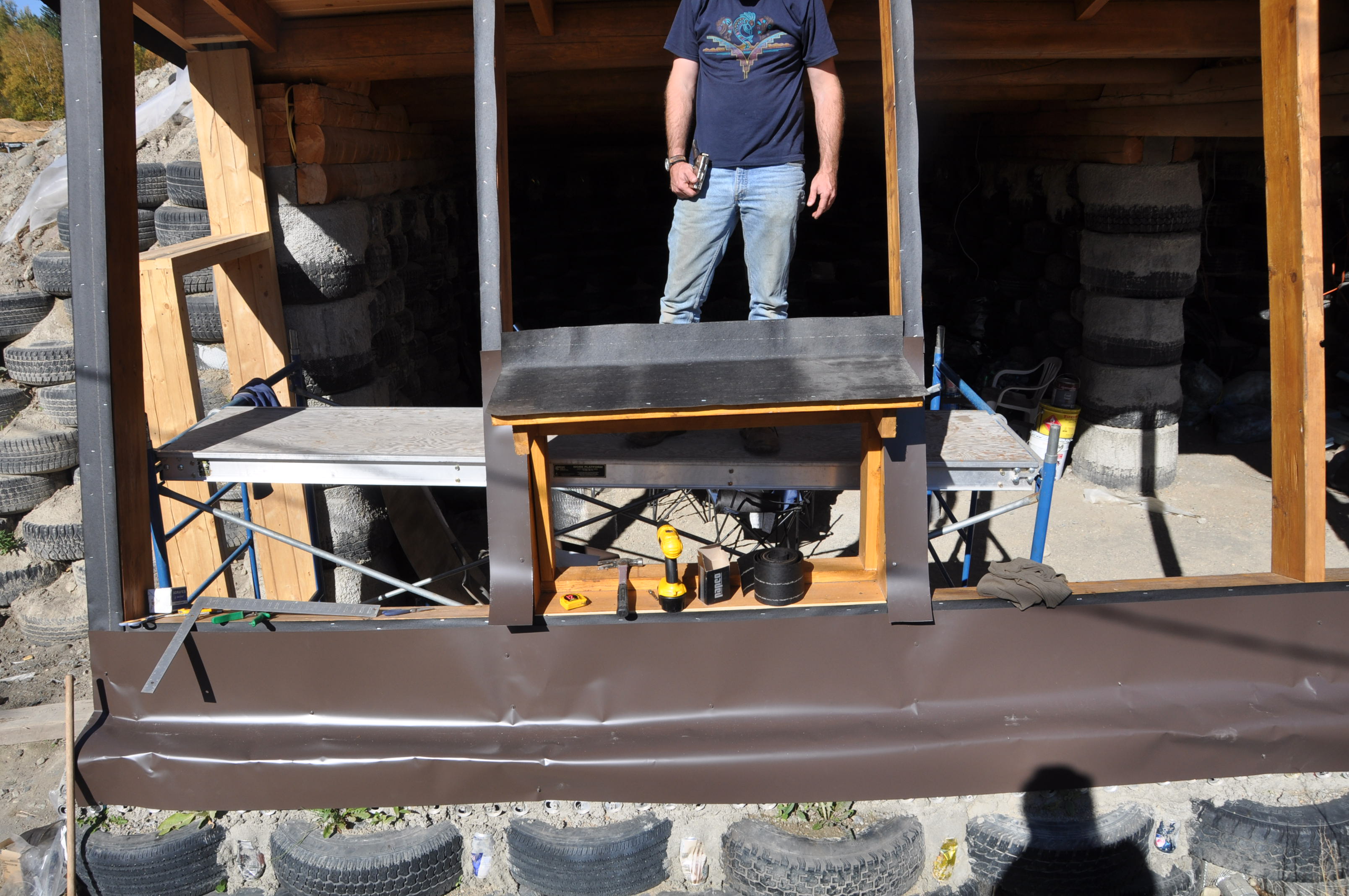

Finally, we flashed the bottom of the wall (we used painted aluminum), and around the edges of the operable windows. We will finish flashing around the operable windows after they are installed. In the picture attached to this paragraph you can see the 2×6 decking and underlayment on the roof over the operable opening and the flashing to-date.

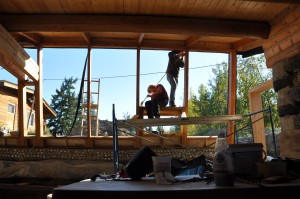

In the last couple of days we have started installing the extruded aluminum glazing system. Much of this work has been simple; cutting the aluminum to length, and mounting it to the exterior faces of the 3×8 framing. The hardest work by far has been inserting the EPDM gaskets into the extrusions. The instructions warn that this is a difficult job and will hurt your thumbs as you press the gasket into place … this was an understatement! Our thumbs are killing us!
I suggested heating the extrusion and cooling the gasket thus temporarily expanding the slots for the gasket and also shrinking the gaskets to make fitting them together easier. Sandra made it clear I was not allowed to heat the extrusions with a torch in case we cracked the finishing paint. We did try to cool the gaskets in the freezer and this was a disaster. I forgot that rubber gets stiff as it gets cold and it became completely unworkable … in my defense this works amazingly well for installing bearings! After that we immersed the gaskets in hot water and had much greater success. Our fingers still hurt but we are making better progress!
We hope to get the glazing system installed over the next week. Here are some more pictures …
Collin Gibson says
I am so impressed. You guys have really taken on a mammoth task and are doing exceptionally well. (applause!)
Sandra says
Thank you Collin, we are pretty impressed by what you guys have done, too! http://www.ourweehouse.com
Hugh says
Hello,
Can you tell me more about the glazing extrusions you used? Who is the manufacturer and where did you get them.
Thank you,
Hugh
Sandra says
Abundant Energy in Pine Island New York. It is a product called Pro-Seal and a fellow in Colarado (I think) used it on his earthship…so we knew it had been done before. There are companies in Canada that sell the systems but they were A) twice as expensive and B) didn’t want to sell us anything without an installation fee. It added a bit to the cost of the windows, but given our varying squareness for the front framing, this product was excellent. Once we installed it, we carefully measured the window sizes, allowed 1/16″ tolerances and every piece of glass we ordered, although all different sizes, fit perfectly into the extruded glazing system.
Abundant Energy was excellent to deal with. They handled the freight and they answered all my exporting/importing questions very knowledgeably. We’ve had experience shipping products internationally, so it worked well for us.
Hugh says
Thank you Sandra.
I found their website.
http://www.abundantenergyinc.com/
Hugh
